HO | N | Z SCALES

Personal Model Railroad Layouts : Small Scale

At SMARTT, Inc., we specialize in crafting personalized model railroad layouts in HO, N, and Z scales. Our experts bring your creative vision to life, ensuring each layout is a stunning representation of your imagination and passion for model railroading.

HO/O SCALE 22 FT X 31 FT

Description

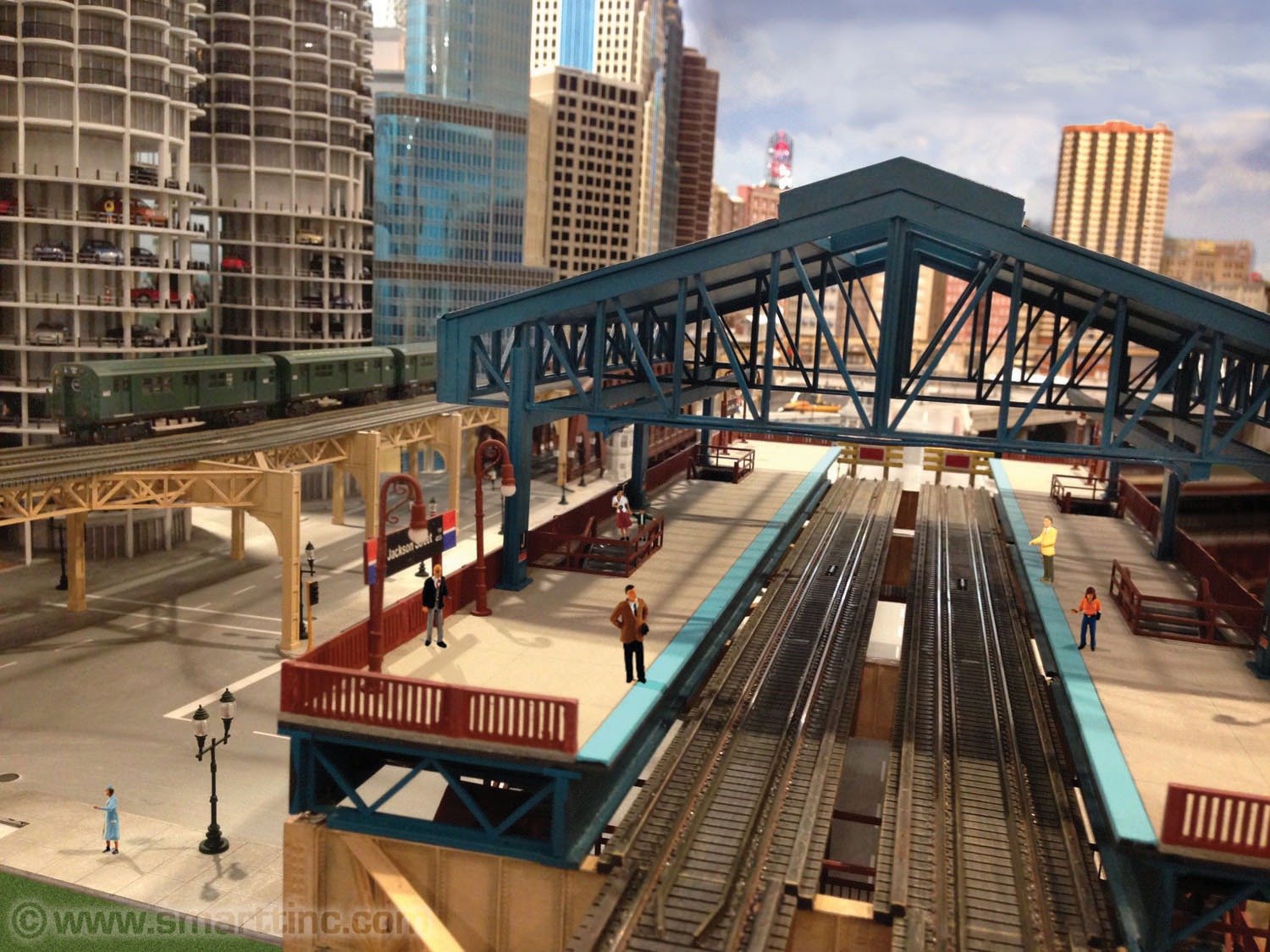

Chicago in Miniature

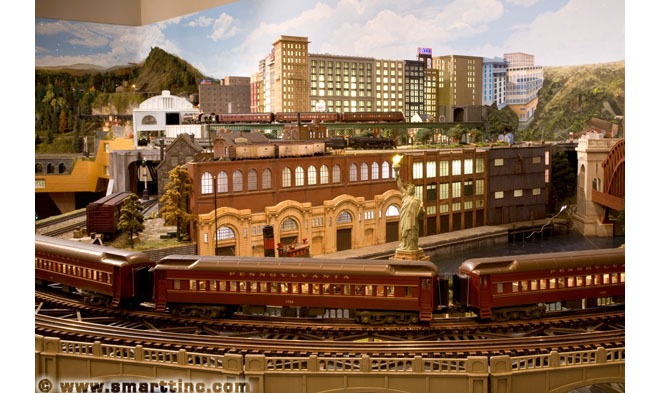

This is another of our blockbuster combo scale layouts that is second to none. built by the dreamers here at SMARTT.This multi-level/multi-track layout Features about sixty turnouts for almost infinite operating maneuvers in High-Rail O-scale, delivering lots of action with the utmost realism. While the 3-rail mainline trains wend their way between a number of custom painted and upgraded operating accessories, scratch built structures, and

Fabulous one-of-a-kind bridges, there is also an independent double-track operating subway serving 2 stations. All of this O Gauge empire Features digital control for both Lionel and MTH.

As if this was not enough, one entire wall, over thirty feet long. encompasses an idealized HO scale version of part of the downtown Chicago skyline. Almost two dozen replicas of signature Chicago landmark structures, some reaching over four feet high. set the background of a busy city scene bisected by the Chicago River in the center. Selective compression and creative use of theatrical Forced perspective makes everything blend together naturally.

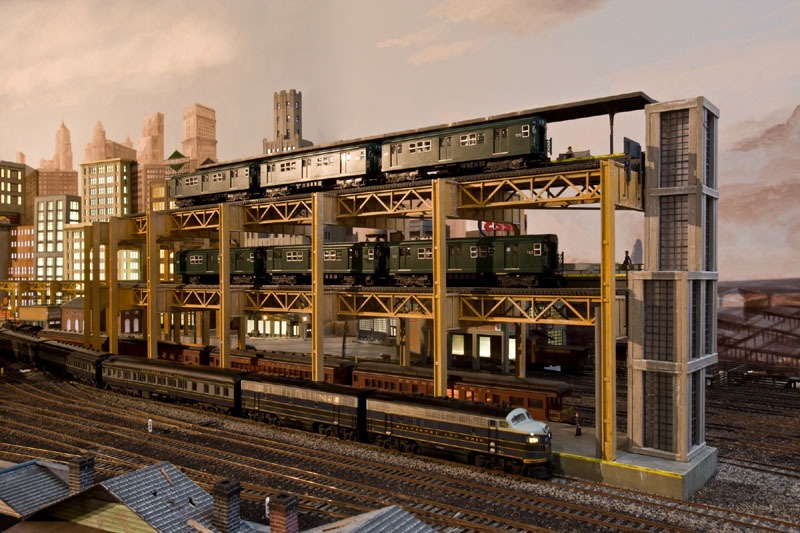

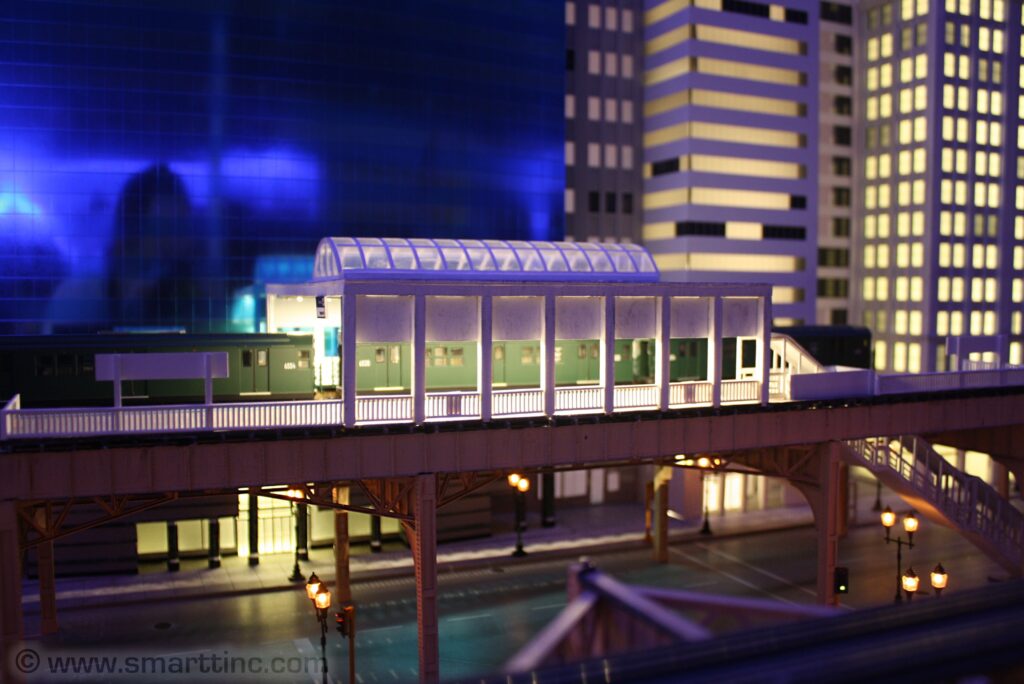

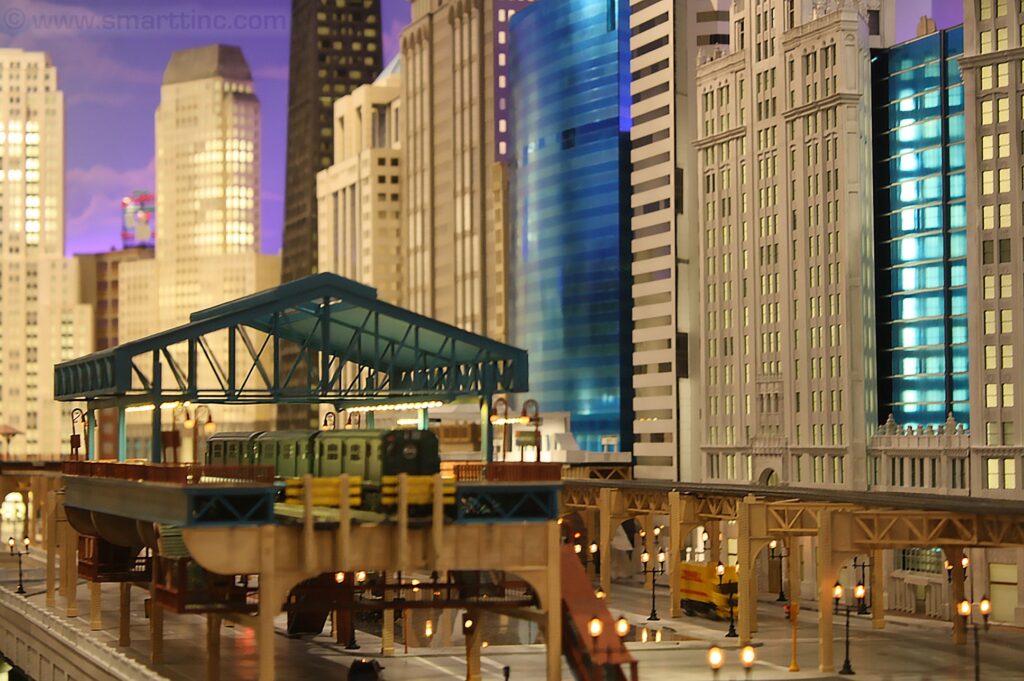

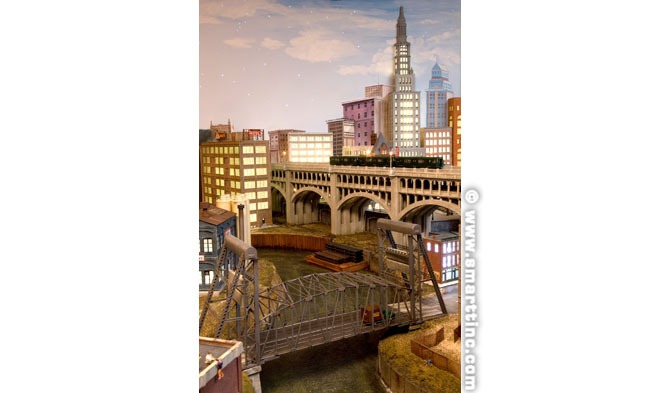

Of course, the Windy City would not be complete without the world Famous Chicago 'EL: Our model, like the prototype, is double-tracked. Bi-directional automatic operation where the trains make station stops at several replicas of real-world EL stops brings the whole scene to life. Adding to the mix is an operating Faller Car System passing back and forth under the EL and across the river.

Even with all this, there's room For expansion in the drop-in scenic sections surrounded by the EL. New structures can be swapped in and out of those areas currently left blank as new ideas are requested by the client.

Technology is front and center in this layout. The HO 'EL' trains are run by custom electronics. The entire EL itself, as well as significant parts of some signature buildings, were custom designed and Fabricated From high resolution 3D printed parts, as well as our usual menu of Laser cut and CNC construction techniques.

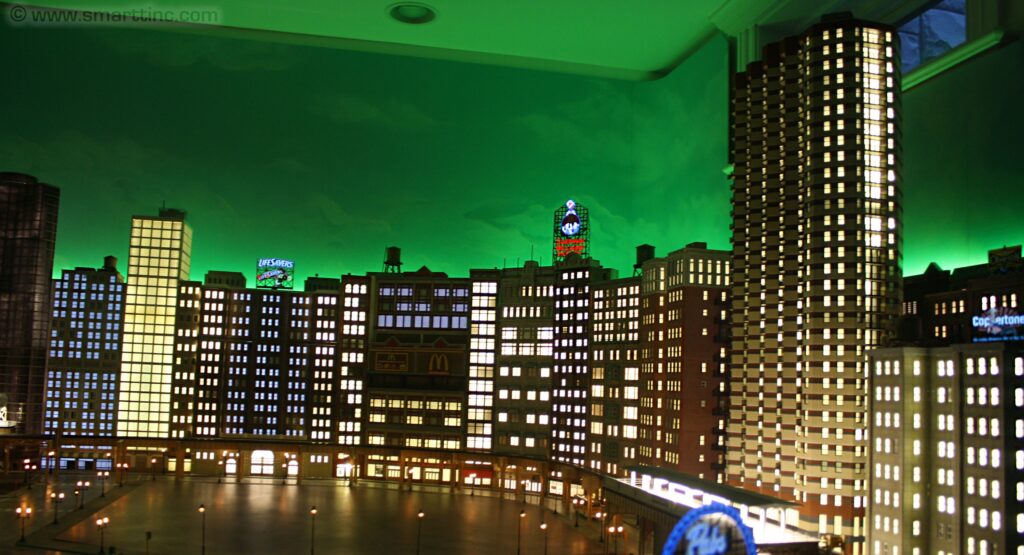

Finally a programmable multi-color light set running the length of the perimeter sets the mood.

Chicago...my kind of town!!!

Specifications

Location: Illinois
Scale: HO Scale and O scale
Dimensions: 22 ft x 31 Ft Around-the-
wall configuration with central peninsula and swing-bridge access.
Number of Modules: 16
Min. Aisle: 30" inches
Total Turnouts: 58
Turntables: 144 Ft O-scale turntable and matching custom roundhouse
Track:
- HO operating "El line:" Walthers/Shinohara Code 83
- O Scale: 3 Rail Gargraves Track with Ross Custom Switches
Control System:
- HO-SMARTT Custom Digital Back & Forth
- O-MTH-DCS/Lionel TMCC/Legacy
Features:
- Faller Car System operating in HO scale Chicago themed section of layout
- Operating replica of Chicago Elevated Train, including replica of several actual stations.
- Realistic replicas of many of Chicago's most Famous structures, including the Sears Tower, the Wrigley Building. 333 Wacker, the Hancock Building. the two Marina Towers, and more!
- Numerous operating accessories
- O-scale operating subway line with super-detailed stations

HO SCALE 15 FT X 38 FT

Description

Endless Operations

This exciting HO layout is an operator's dream. At about 38 Feet long. and averaging about 10 Feet wide, the walk-in design delivers tons of realistic action. There are two independent mainlines with numerous passing sidings, changing grades as they traverse their routes. There is an extensive classification Freight yard, a smaller stub end yard with a Full locomotive service area complete with a 130 Ft turntable, a massive passenger terminal with a Freight terminal below, and several industrial spurs. A lengthy 5 track hidden staging yard completes the track plan.

With so many variables, the different routes and schedules this layout design provides are almost limitless.

Long, wide aisles, accessed through SMARTT's tried and true swing gate (no duck-under), permit several people to Follow along as their DCC controlled trains run along the lengthy routes. But wait. There's more!

This layout is outfitted with a full-blown, extensive, signal system that is software controlled to operate just like a prototype system. Better yet, if you want to just sit back and enjoy the show, this layout's electronics are set-up For Fully automatic computer-control, as well.

The completed scenic elements on this layout are extensive, yet some have been left unfinished for our client to complete at his own leisurely pace (this option is available to every prospective client). Be advised we set the bar pretty high on the finished scenes that we detailed!

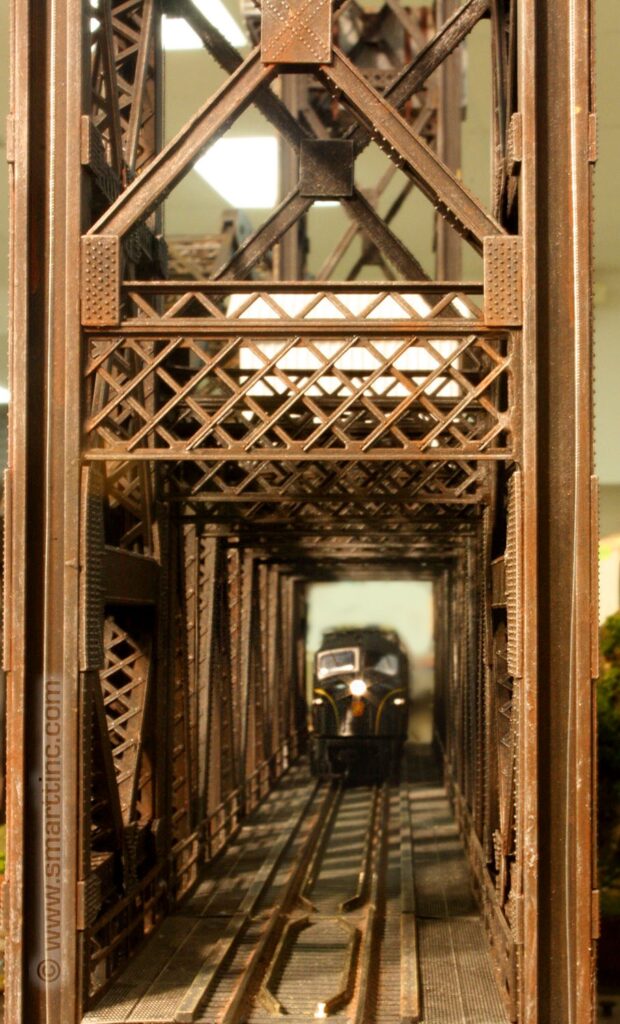

Check out the animated bridges on the video. One bridge is a modified Walthers operating Bascule bridge, while the other is a completely scratch-built OPERATING lift-bridge based on an Illinois prototype. Laser cutting. 3-D printing, and custom mechanical design & circuitry were all involved in achieving the exciting action these bridges provide.

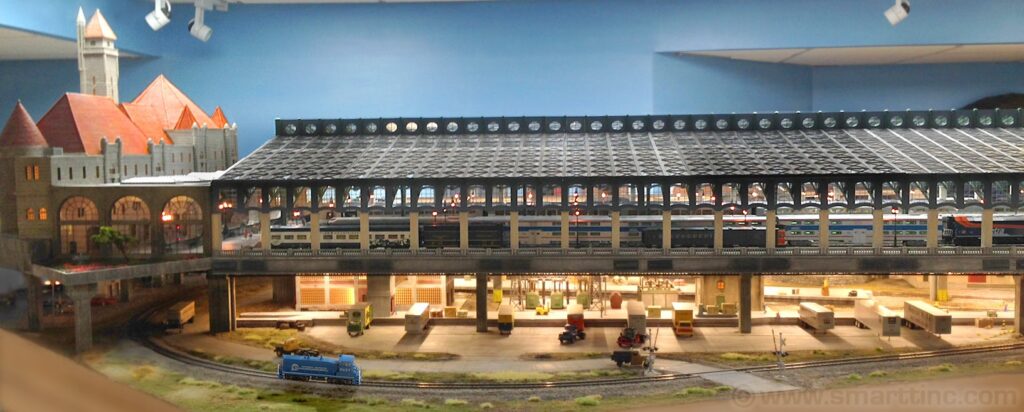

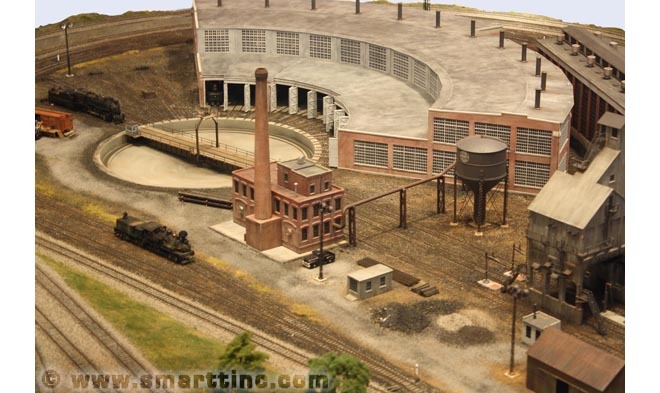

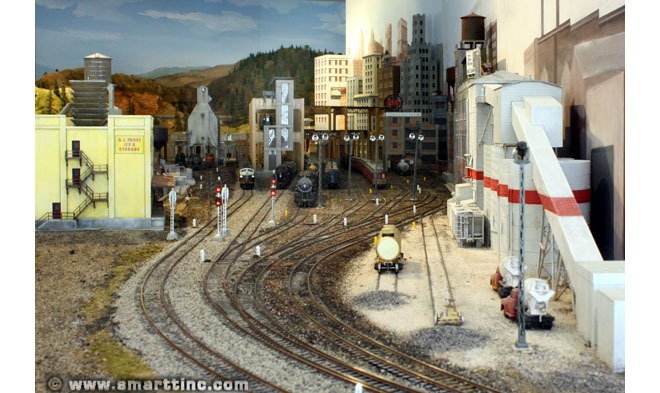

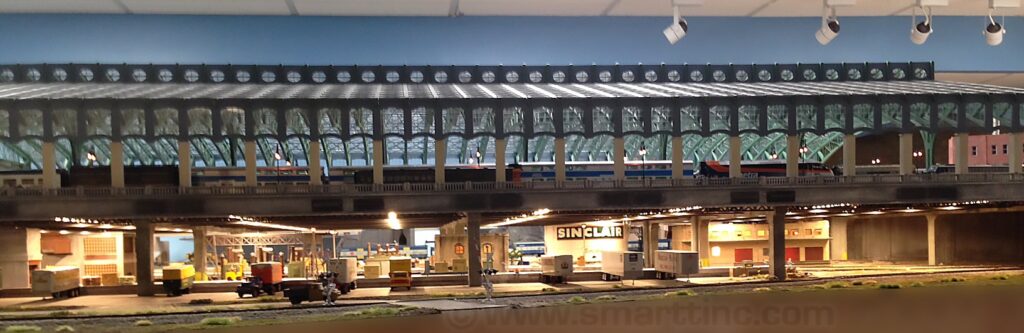

Another thrilling detail is the huge. 12 track super-detailed passenger train shed next to an upgraded replica of the old St. Louis train station. Below the station is a Fully detailed Freight terminal loaded with cool vignettes and realistic lighting.

We can only sum up this one with a single word WOW !!!

Specifications

Location: Illinois
Scale: HO Scale
Dimensions: 15 ft x 38 Ft Around the Room
Rectangular with swingbridge access
Number of Modules: 20
Min. Aisle: 26" inches
Total Turnouts: 88
Turntables: 130 Ft operating turntable
Track: Walthers/Shinohara Code 83 Shinohara Code 70
Control System: DCC - Wireless: RR&CO ready
Features:
- Custom built operating railroad lift bridge
- Dutch-door style swing-bridge For room entry

HO/O SCALE 9 FT X 15 FT

Description

European Themed Automatic Operation Layout

Though model railroad layouts typically occupy a spare room or basement, this little gem of a layout was designed as a 3-Dimensional work of art to be displayed in the family recreational area as a central exhibit for all to enjoy. Small, but intricate, this layout's original geographic theme was North America, hence the Code 83 track and some stylized American Features. Then, early on in the process, the client decided that the places he most wanted to depict were from his family's travels, so that every Family member could re-live some of their cherished memories. To accomplish this change he was in good hands since the expertise of the designers and craftsman here at SMARTT often adapt to a client's changing interests, midstream. As a result, before the scenery phase began. the decision was made to create a European styled display.

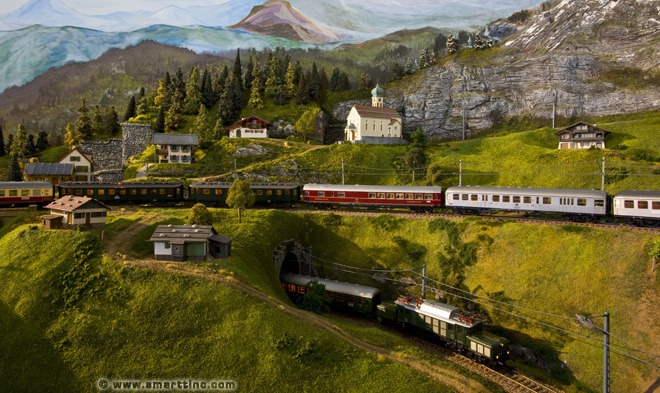

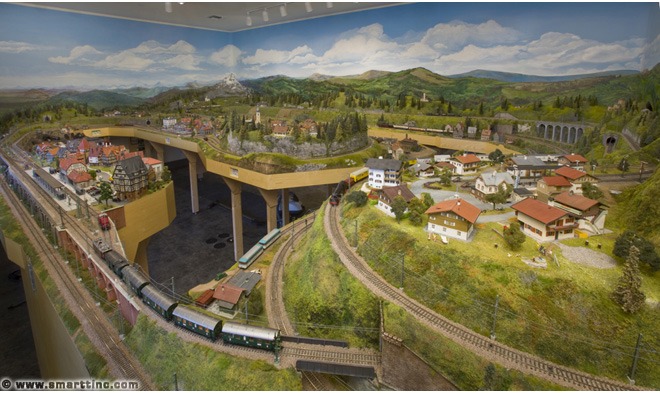

The centerpiece of this layout is an homage to the riverfront of the Austrian town of Hallstadt, a picturesque village on the lake Hallstätter See. Prominently Featured are a beergarten (beer garden), vineyards, castles, and an operating ski-lift. There are also romantic vignettes of key Family memories. With so many structures, figures, and details, there is always something new to discover.

The layout features an automatic hidden reverse loop For unattended operation via the DCC control system perfect for entertaining the guests or just relaxing and watching the trains run. The layout is finished in a polished wood veneer for an antique Furniture look.

Specifications

HO SCALE 12 FT X 19 FT EL LAYOUT

Description

SMARTT's Reworked Atlas Central Midland Layout

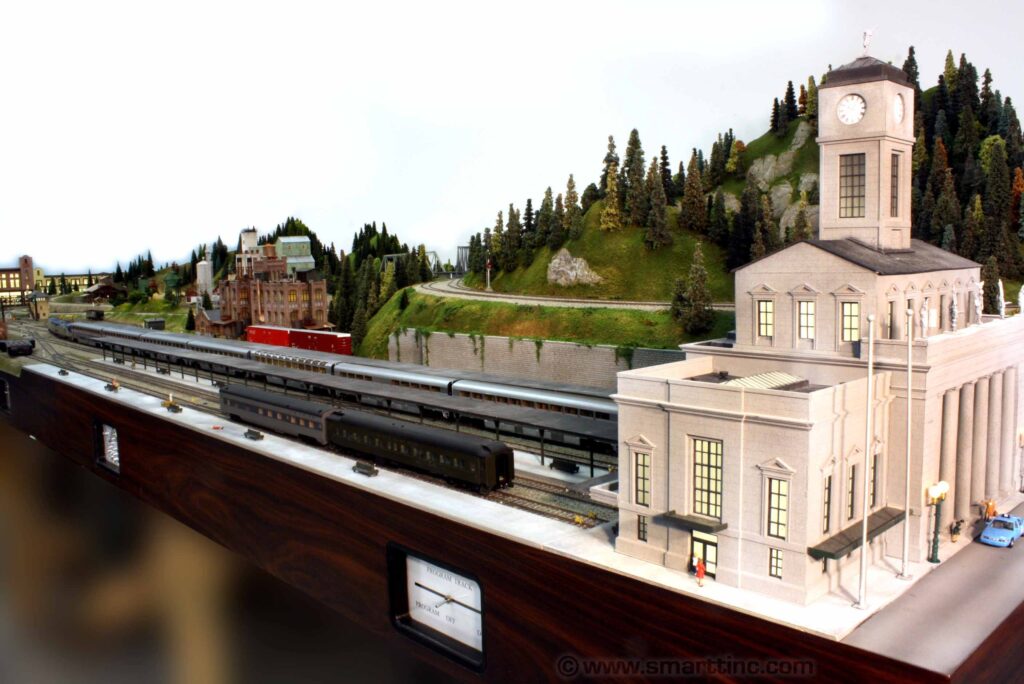

The venerable and popular Central Midland layout designed by John Armstrong. first appeared in the Atlas Layout Book decades ago, and has been repeatedly Featured in Atlas publications since then. Of course it wouldn't be a SMARTT layout without putting in our own magic touches.

We have maintained the spirit, look, and feel of the original Central Midland plan, while incorporating all kinds of new and creative Features to make this tried and true design even more exciting and different.
The original Central Midland (CM) layout squeezed a lot into a 10 Ft x12 ft L shaped space.

We resized the layout to be longer and wider, with a 12 Ft x19 Ft outer perimeter and mirrored the track plan so that the short leg of the L is now on the left-hand side. The larger space enables us to increase mainline curve radii to a generous 32"-36". Broader curves mean that modern equipment, long passenger cars, or large steamers, can run comfortably with a much more majestic look.

The increased size allows for gentler grades (2.1% in visible areas. and 2.3% in hidden areas), with clearance For modern era double stack container cars.
The original CM ran less than 200 feet of track. Our revised design. with two independent mainlines, increases the overall track run to just under 500 Feet!

To really liven up operations, the SMARTT design includes a new sweeping reverse loop, and bi-directional hidden staging tracks to introduce new trains onto the scene!

Realistic track work was achieved using Code 83 Walthers/Shinohara Flex track and turnouts. Most of the fifty (yes. 50) turnouts are broader, gentler #8's, as opposed to the tighter #4's and #6's on the original CM.

The theme of the layout is the Pacific Northwest. The geology and geography, the scenery design, and indeed, many of the city façade buildings, were taken directly from photos of the area. In addition to a few brick and mortar industries serving the added industrial spurs, there are detailed vignettes of a logging operation. a petroleum refinery, and a grain storage Facility.

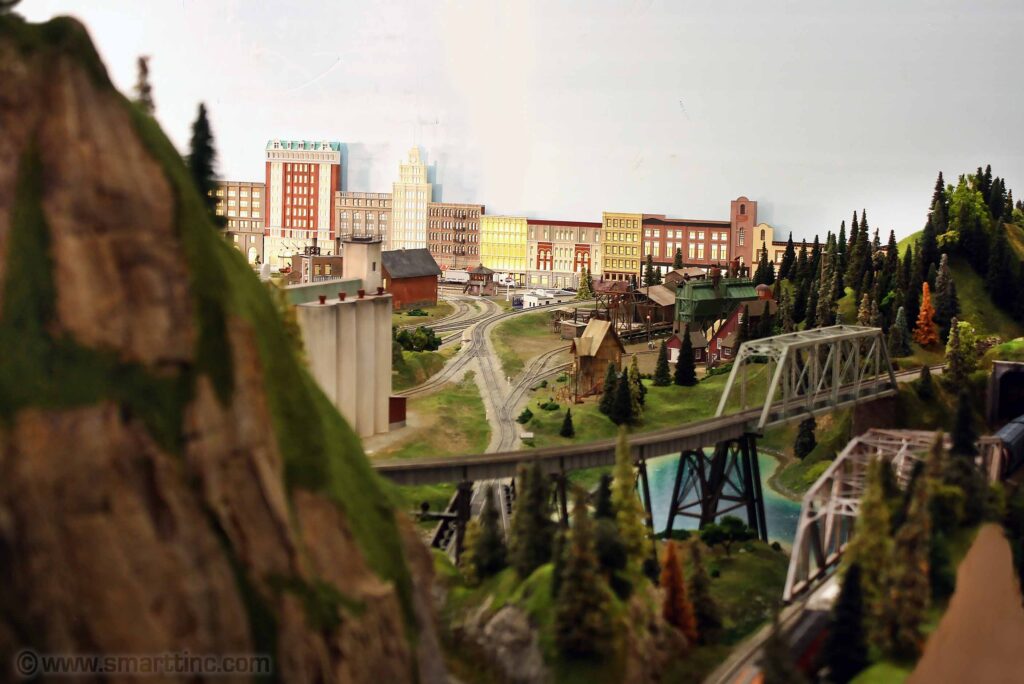

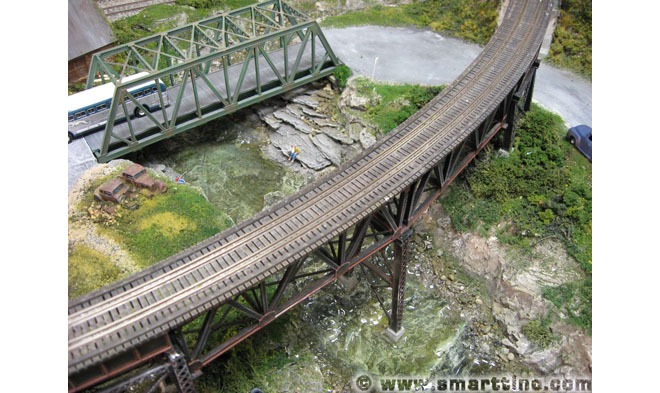

We expanded on the original CM bridges with more complex bridges passing over and under each other. The long, meandering lake graced by all these bridges invites you to jump right in.

Finally. we finished off the aisle areas of the layout with a rich polished rosewood veneer for a fine furniture look. We've always pointed out that a model railroad layout is a family entertainment center. This one is already providing many years of enjoyment.

Specifications

HO SCALE EUROPEAN THEMED 10 FT X 11 FT

Description

Miniature Jewel in a 10 x 10 Space

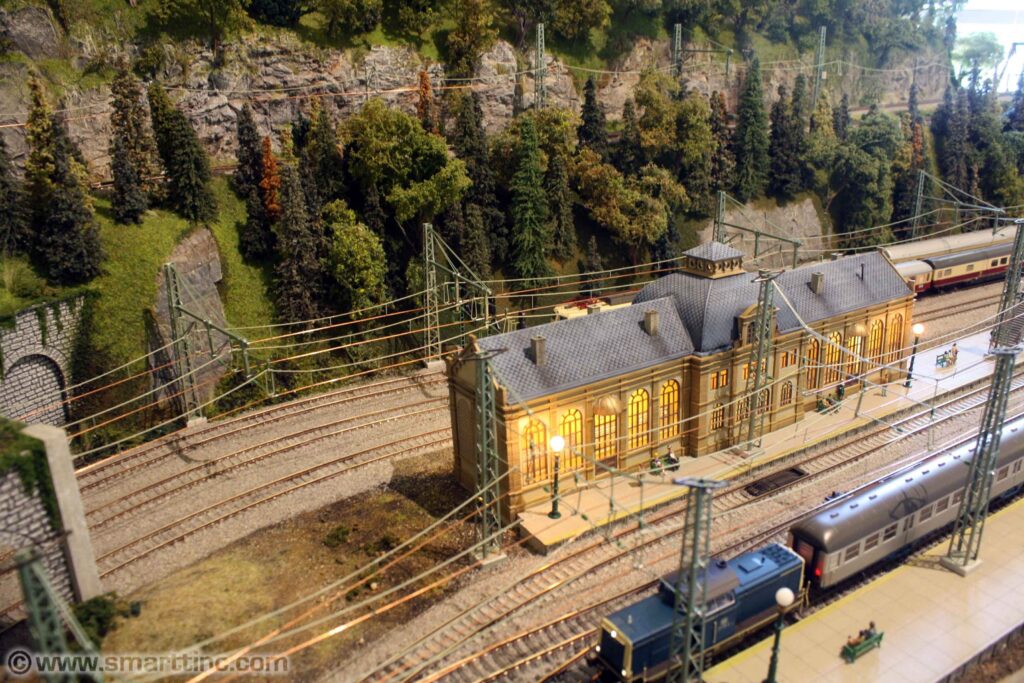

This layout exudes the old world charm of European model railroading in a tiny space so typical of many European layouts! Intricate kits from all the German manufacturers and scenery finished to a high level of detail make this layout seem much bigger than its barely 110 square foot area. To enhance the realism, there is also a highly detailed, though non-functional, catenary system. The pleasing uncluttered look of this layout has, "under the hood." a complex and sophisticated design. Reverse loops and 22 turnouts pack a lot of railroading action into this small bedroom or den layout.

Specifications

Video

US SUGAR CORPORATION - HIGH END CORPORATE GIFT

Description

US Sugar Corporation - High End Corporate Gift

Here's a real treat that fits the classic phrase "For the man who has everything!" That's what US Sugar Corporation had in mind when they contacted us here at SMARTT.

Management was seeking a memorable corporate gift that would encapsulate fun, in a really attractive, eye-catching package. totally unique to their company? Hence this 2 ft x 3 ft Z Scale rendition of a portion their mile-long production Facility was created, complete with a two trains, finished in US Sugar's private railroad livery paint scheme.

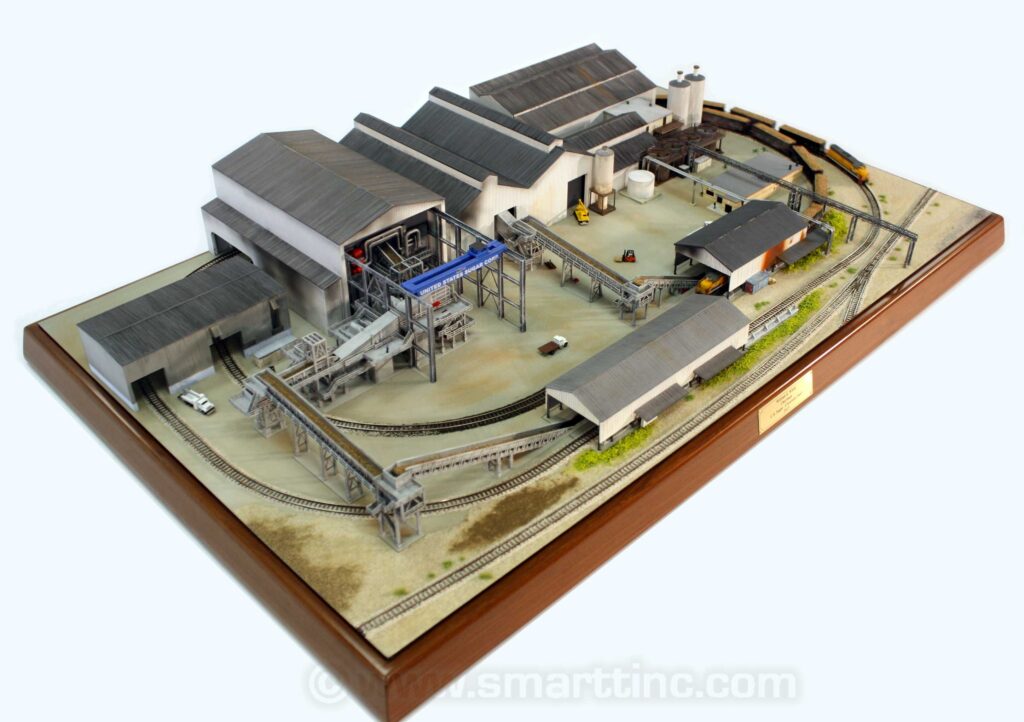

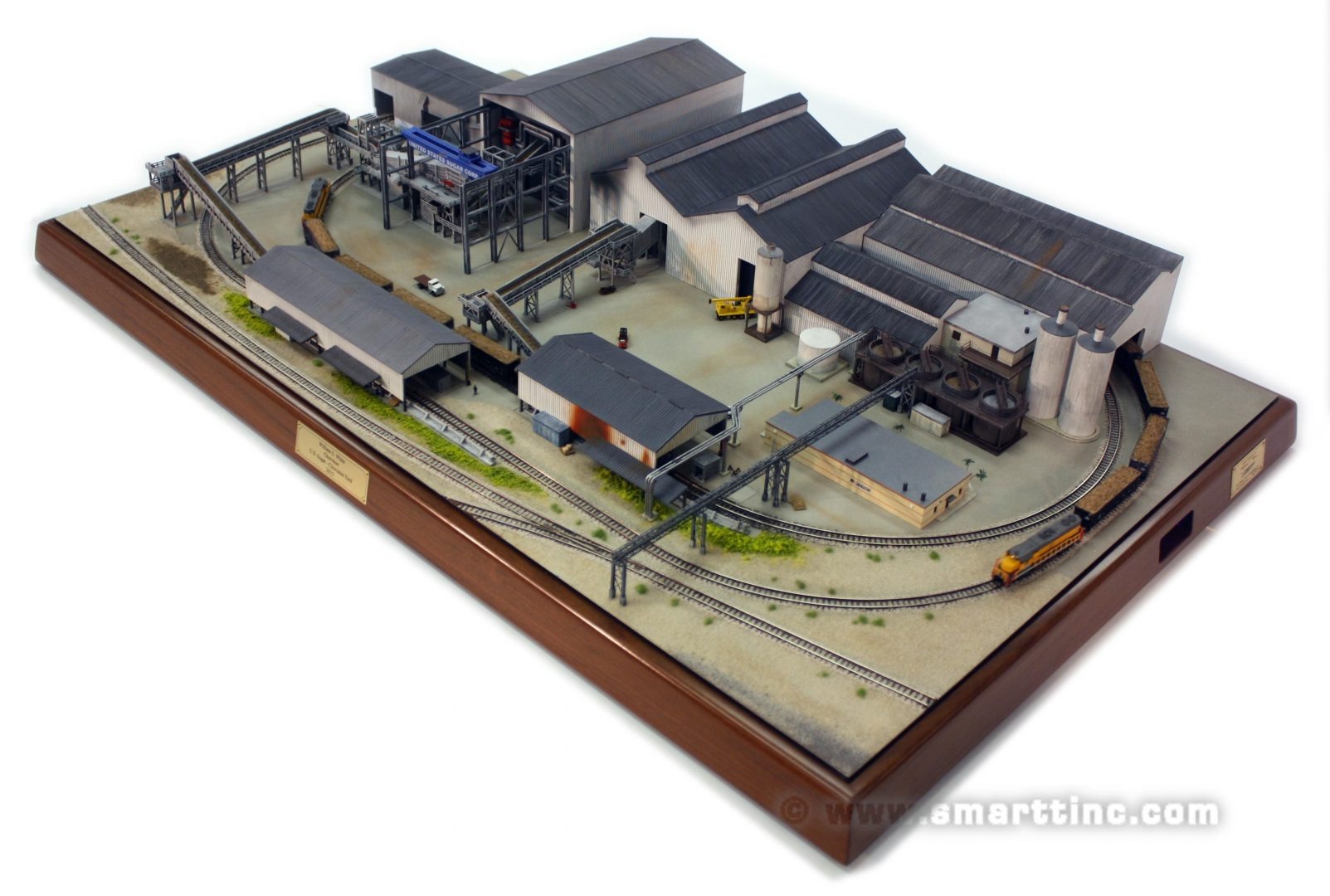

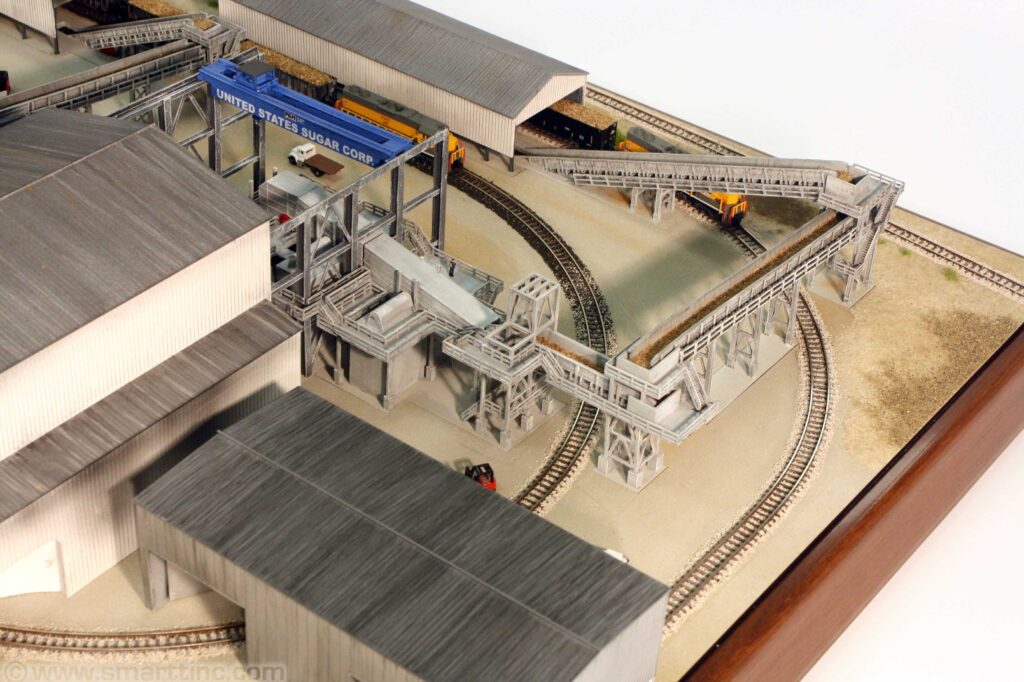

From CAD, satellite imagery, and onsite photos, SMARTT recreated this unloading and processing center in excruciating detail, using the latest in cutting-edge 3D Engineering software. From completely custom virtual representations in the computer, we created 3D printed components (a dozen large components per model). We also extensively used our tried and true laser-cut design process to make a unique gift that no-one else will have.

We added a wireless remote, plug-in or cordless operation, polished wood trim, and a clear acrylic case to deliver a showroom class miniature that grabs the attention of every visitor. We wrapped it all, with an accessory kit, inside a custom printed shipping box for a complete gift package. And then we did it 22 times, each with a personalized brass name plates! A high end corporate gift to remember!

Specifications

Location: Florida
Track: Marklin Z gauge track
Scale: Z scale
Dimensions: 20 in x 36 in Desktop model
Control System: Conventional drive locomotives running automatic loops with optional speed adjustment via keychain remote
Total Turnouts: 1 static turnout on non-operational spur
Features:
- Power source is optionally plug-in or rechargeable internal battery
- Wireless keychain remote control operates speed and master on/off
- Clear acrylic lift-off cover
- included two custom liveried locomotives and 12 custom painted hoppers with textured load
- Unique individually numbered and named plaques personalize the project for each recipient
- Limited series of 22 pieces total
- Genuine lacquered and polished wood trim finish
- Extensive use of custom designed 3D printed super-high resolution components

N SCALE 10 FT X 14 FT

Description

Compact Pacific Northwest N-Scale Model Train Layout

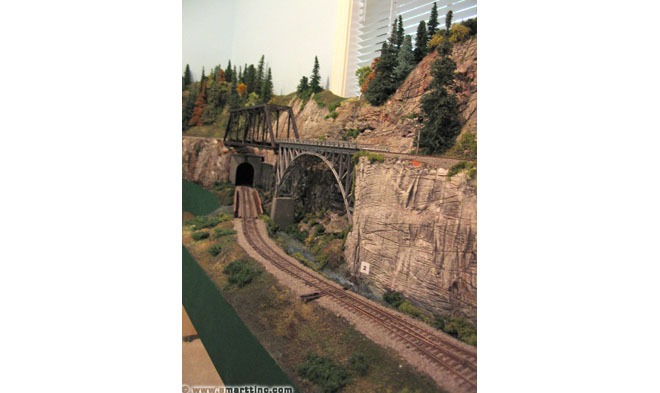

Majestic scenery emulating the Pacific Northwest is the overriding theme of this N Scale layout. The key industries of the region are aptly represented by a coal mine and a spacious lumber mill, while leaving plenty of room for the enthusiast to add many more structures and industries at his leisure in the area around the expansive double-ended yard and sprawling Flatlands.

The unspoiled beauty and towering majesty of the region's mountains hide a 24" radius helix that lets locomotives wend their way upwards to cross a lengthy wood trestle bridge before descending to the shallow hills below. Other bridges at various levels cross back and forth over the deep blue waters and stark cliffs lending further excitement to the lucky operator of this two-track mainline layout that packs so much into a compact space.

Specifications

Video

HO/O SCALE 27 FT X 32 FT

Description

HO/O Scale US Themed Club Sized Model Train Layout

This multi-scale club-sized layout delivers an entertainment packed thrill For Friends and family members of all ages. Featuring a traveling odyssey from the southwest to Chicago, Cleveland, Appalachia, all the way to New York City, this layout will entertain for a lifetime. From a Full Featured steel industry to coal mining. logging, urban transit, and mainline "high-balling", this layout has it all!

This Photo Gallery has pictures of the HO sections of the layout.

For O-gauge action, this layout can't be beat. The trains start at the Full yard and turntable in the American Southwest, reappear in the area of the dingy Chicago tenemants, roll through the Appalachian mountains, and circle the New York Harbor before starting home again.

Specifications

Video

HO/O SCALE 21 FT X 29 FT

Description

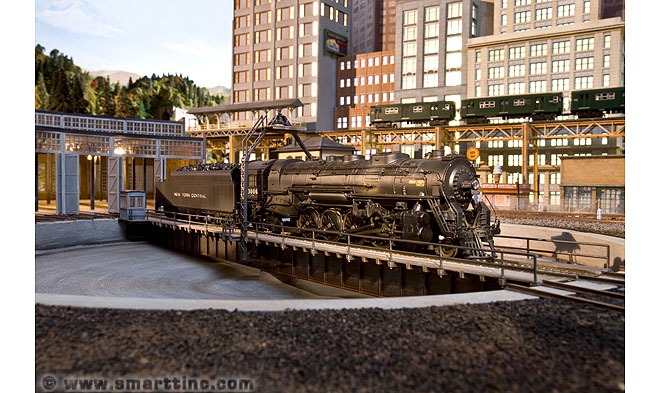

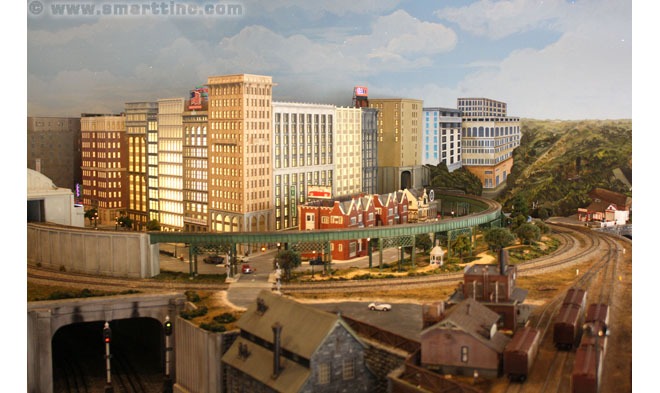

HO Scale/ O Scale New York Central Model Railroad Layout

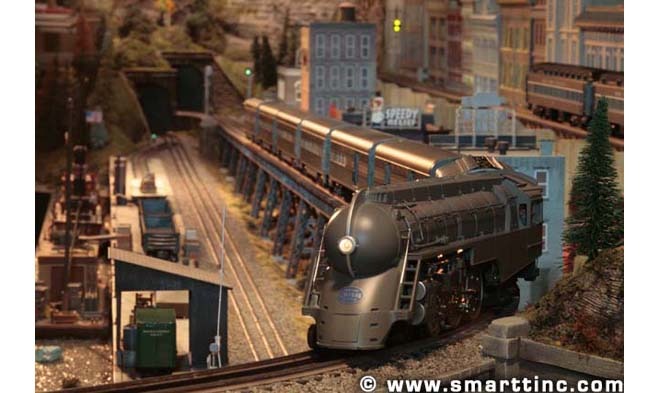

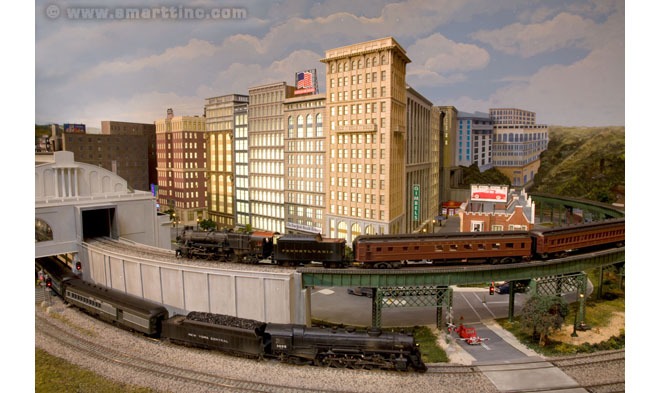

The theme of this Freelance version of the New York Central Railroad is set in the mid-1950's Steam to Diesel transition era. It even Features a European twist in the mountains. Broad curves and large motive power provide plenty of action for this highly detailed HO and O scale combo layout.

Magnificent bridges, viaducts, and a spectacular hand painted scenic backdrop are the hallmarks of this contest quality three-dimensional work of art.

Specifications

Location: Ohio
Scale: HO Scale and O Scale 3-Rail
Dimensions: 21 ft x 29 Ft Around-the-wall configuration with central peninsula and swing-bridge access and an external peninsula against the entry wall.
Number of Modules: 12
Min. Aisle: 28" inches
Total Turnouts: 1
Turntables: Two HO units - 1@ 12" (90') 1 18" (130)
Track: HO Code 83 O Gargraves /Ross
Control System: HO Wireless DCC O- Wireless DCS/TMCC
Features: Three track Dutch-door style swing-bridge for room entry.

Video

HO SCALE 17 FT X 27 FT

Description

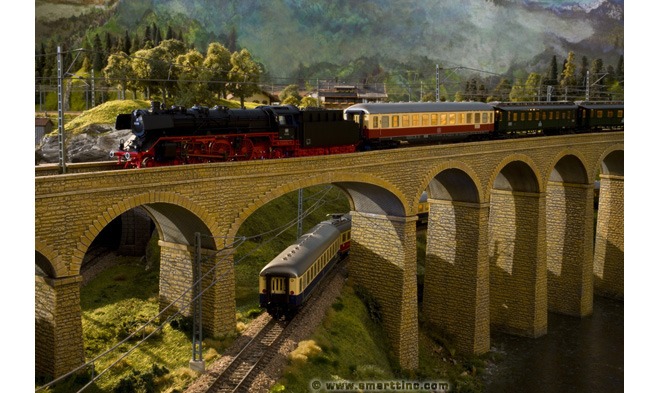

HO Scale European Bavarian Model Railway Layout

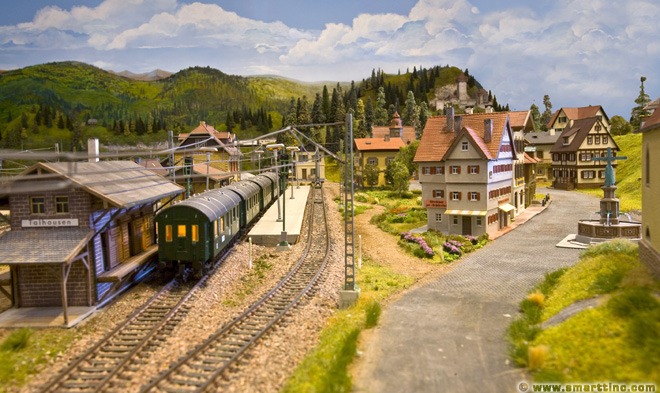

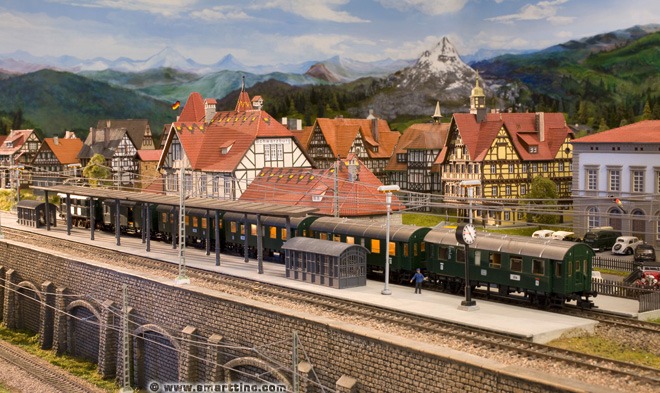

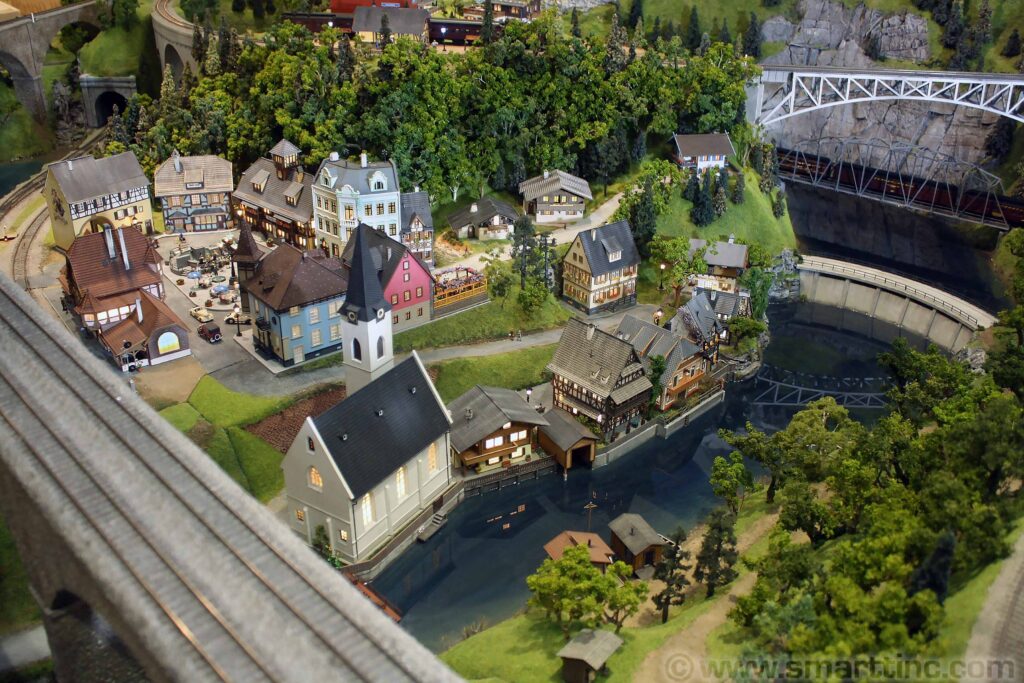

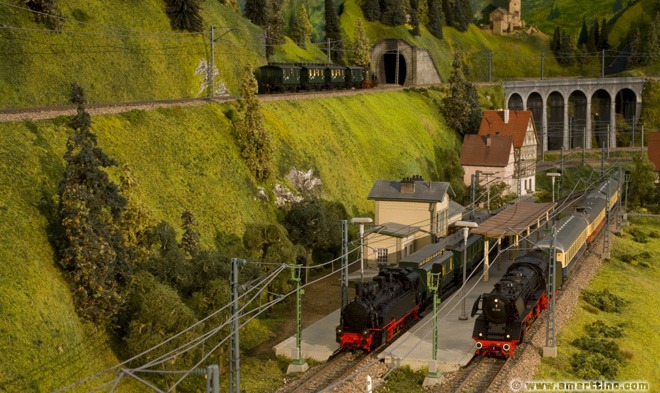

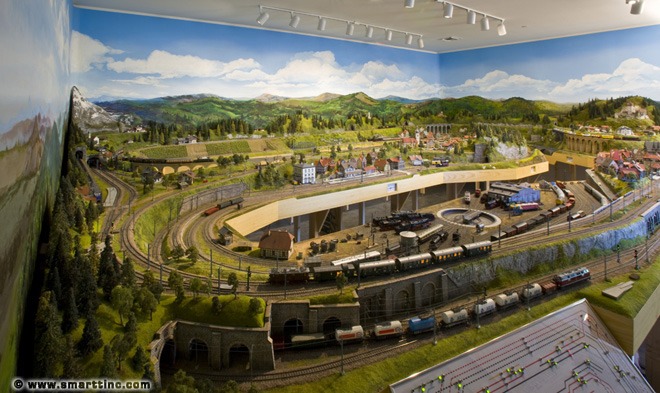

A little European Flavor makes this layout different from the run of the mill. This layout is themed around Bavaria in the summer bringing back the nostalgia of the 1920's. Two main lines and lots of hidden track deliver plenty of operational action, in addition to a yard equipped with operating turntable and the cog-line back & Forth in the mountains. Both main-lines have catenary across their entire runs.

Small villages and large towns populate the landcape, filled with classical half-timbered buildings typical of the region. In the mountains several castles including a large imposing Schloss dominate the countryside below. Forced perspective is achieved by using a mix of HO and N scale structures. Also present is a detailed vineyard where great German wines are born.

A custom painted backdrop extending the Southern German countryside into the distance completes the tableau.

Specifications

Location: California
Scale: HO Scale
Dimensions: 17 ft x 27 ft Around-the-wall configuration with central peninsula and swing-bridge access.
Number of Modules: 15 Min.
Aisle: 30" inches
Total Turnouts: 42
Track: Peco HO code 100 Nickel Silver
Control System: Wireless DCC
Features:
- Two track Dutch-door style swing-bridge for room entry
- Hidden staging in seperate room with polycarbonate dust cover
- Fully Featured control Panel
- Full catenary on all mainlines
- operating cog-rail line

Video

HO SCALE 12 FT X 13 FT

Description

Mid-level Freelance Layout

This smaller mid-level Freelance layout features two mainlines, two turntables, and a small yard and provides interesting operation and switching For the budget minded with a spare bedroom or den to fill. The scenery, which includes mountains, tunnels, bridges, waterways, and a small town, provides a finished look and feel while still providing ample opportunity for the hobbyist to add additional details and structures at his leisure.

This SMARTT layout exemplifies that you do not need to be a millionaire to enjoy a custom-made ready-to-run train layout in the comfort of your own home.

Specifications

HO SCALE 25 FT X 25 FT

Description

HO Scale Freelance Pennsylvania Railroad Layout

A Freelance version of the Pennsylvania Railroad is the theme of this club sized HO masterpiece. Set in the summertime of the mid-1950's, this layout showcases the thriving steel, oil refining, logging and coal mining industries, that were so prevalent in the period. Pennsylvania Railroad notable prototypes such as the Crestline roundhouse, and viaducts emulating PRR's Rockville Viaduct and the Erie RR Starrucca Viaduct, are Featured historic highlights.

Fully programmable computer control complements the DCC and prototypical signal system providing for completely automatic train operation --- truly a delight for the high-tech savvy train enthusiast.

Engineered and built to the highest standards, exceeding museum quality, this one-of-a-kind model railroad layout more than achieves our client's vision.

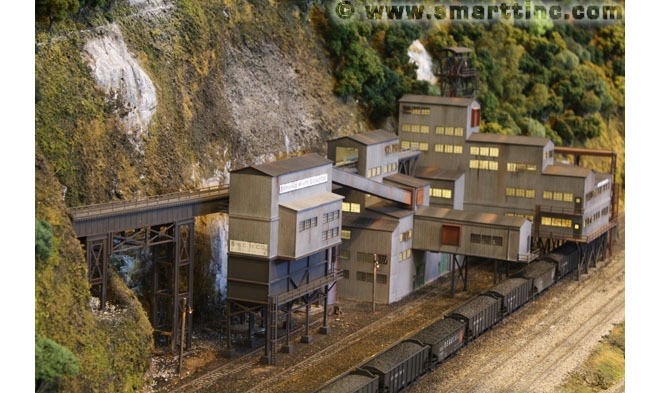

Here's a gallery of images from this layout, this time of the super-detailed industries and countryside.

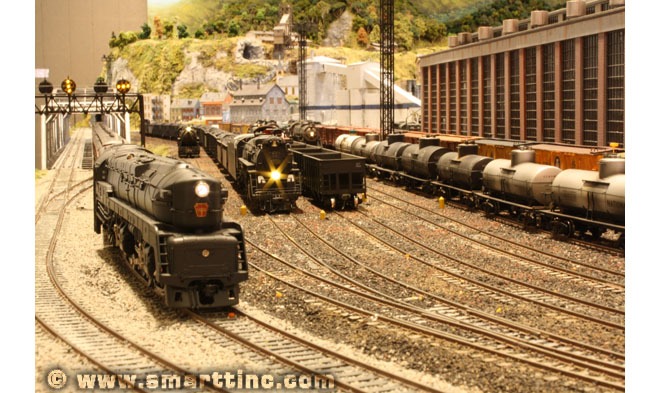

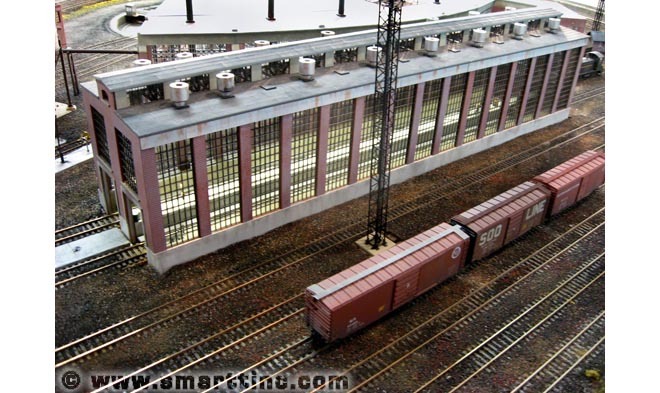

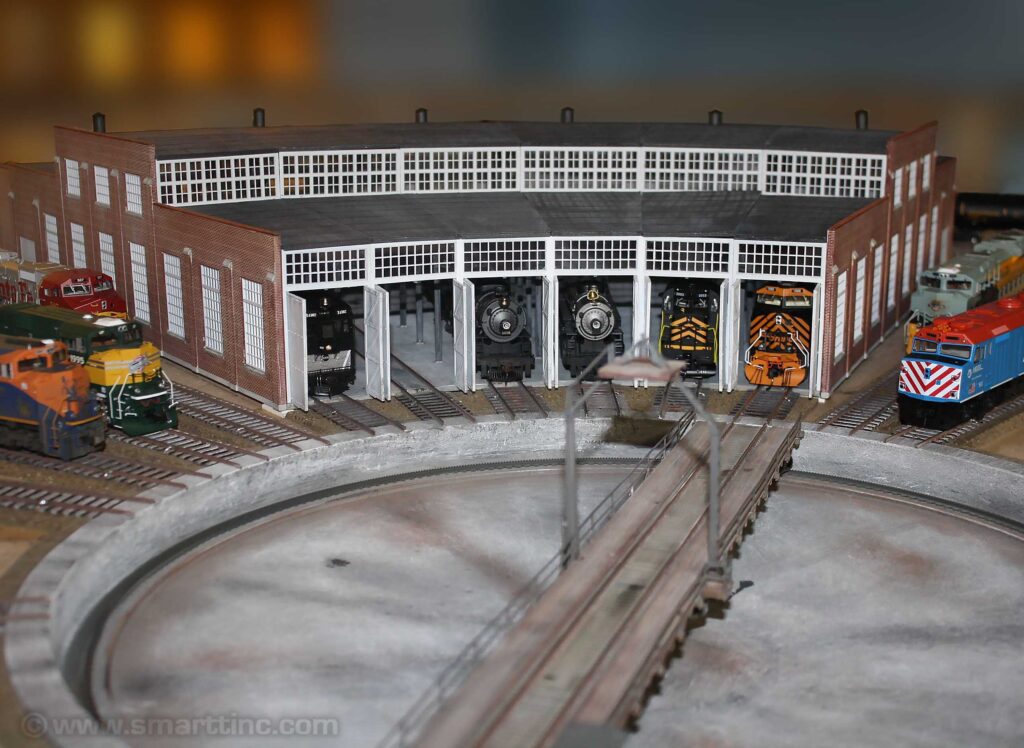

Roundhouse - The round house is a replica of the Pennsylvania Railroad Roundhouse in Crestline, Ohio. Selective compression reduced the more than 180 degrees that the original has, but the character and unique style of this structure is still intact.

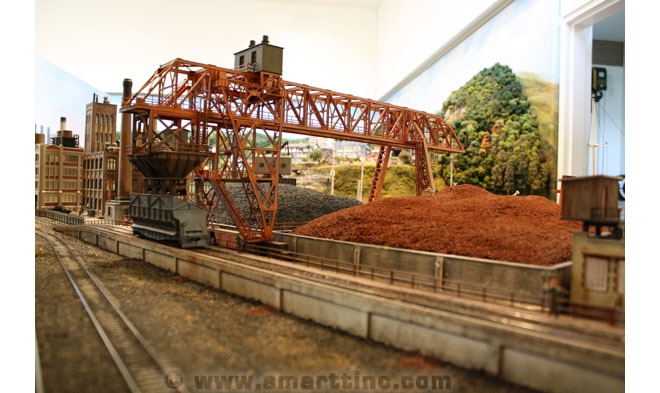

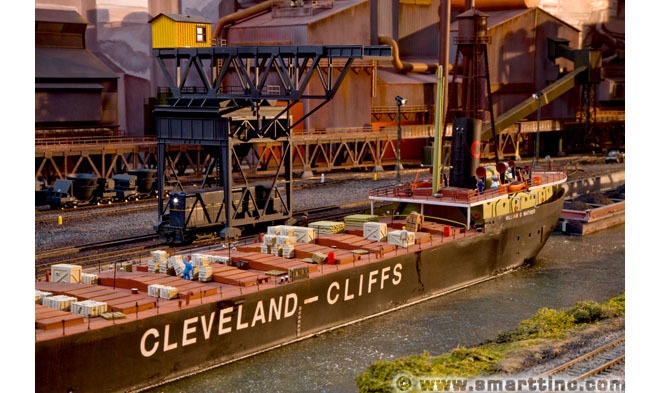

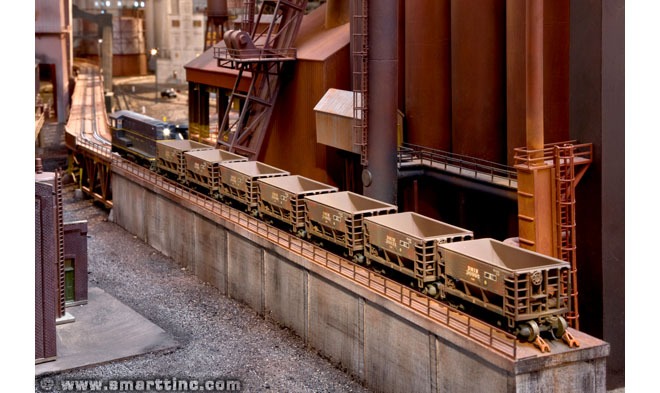

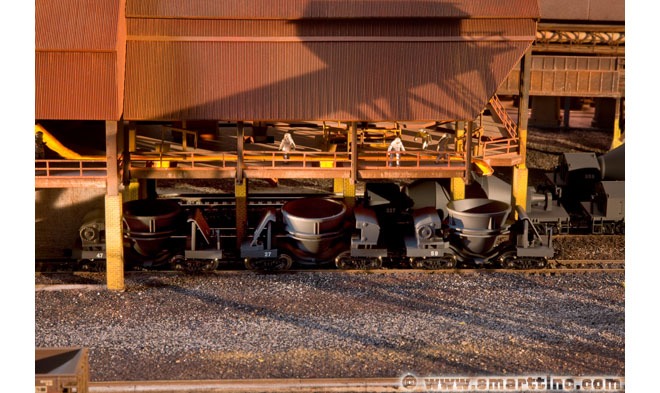

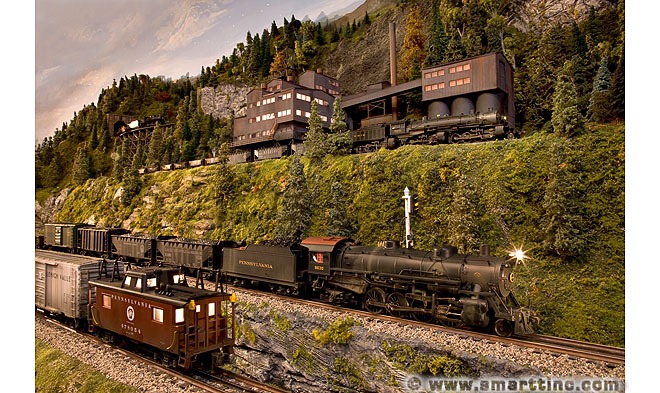

Steel Industry - This layout's extensive steel industry includes a customized Blast Furnace with glowing molten metal in the distribution troughs as well as other detailed support buildings.

Specifications

Video

HO SCALE 16 FT X 18 FT

Description

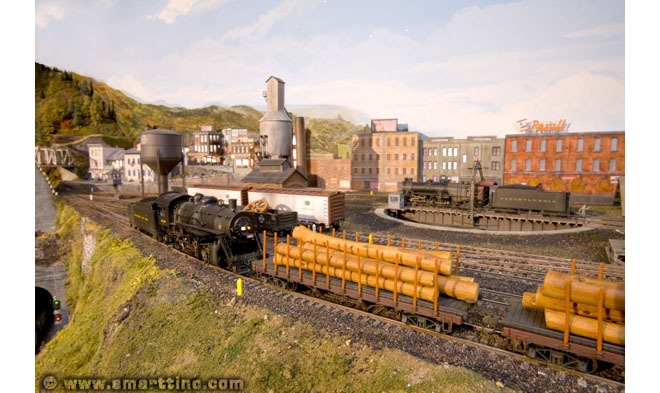

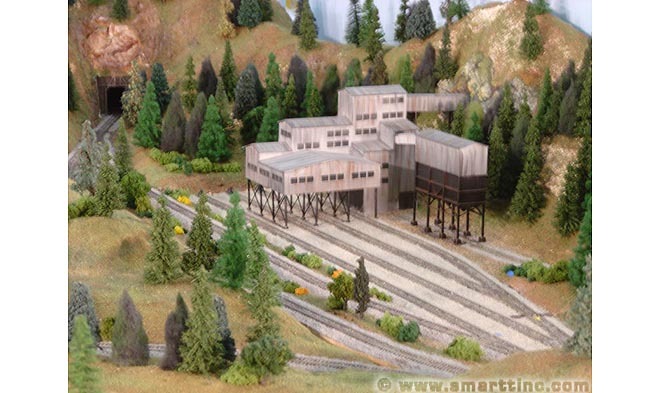

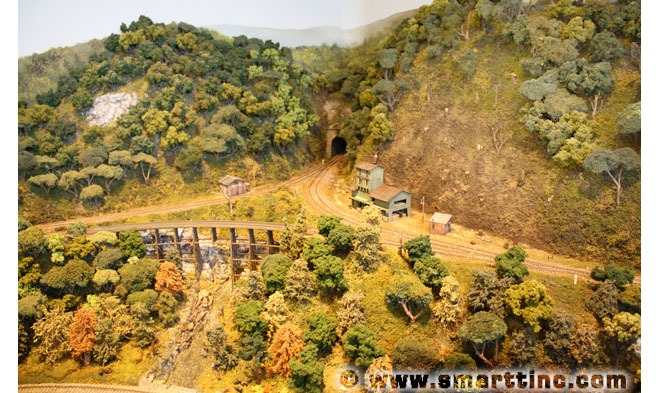

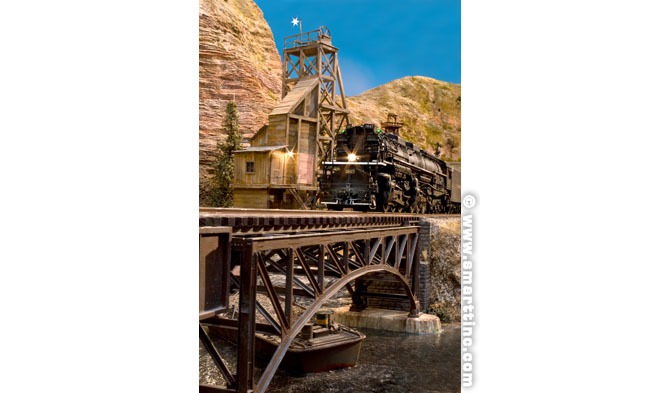

Pacific Northwest Logging and Mining Layout

This model railroad layout depicts the popular Steam to Diesel transition era of the late 1940's to 1950's. The theme is the Pacific Northwest From Washington State to Minnesota, showcasing the Fallen Flags of the Great Northern, Western Pacific, and Northern Pacific Railroads.

From a large central railroad yard and locomotive servicing Facility overlooked by a lengthy urban scene, to distant travel over several rivers up into the rugged mountains, this layout is a visual treat! With numerous tunnels, a great logging scene, and a rural harbor that brings back memories of days gone by, this feature-laden display has a complex and exciting Feel, yet provides easy and enjoyable operation For one or more.

Specifications

Video
